SUNSHADE DECORATIVE METAL

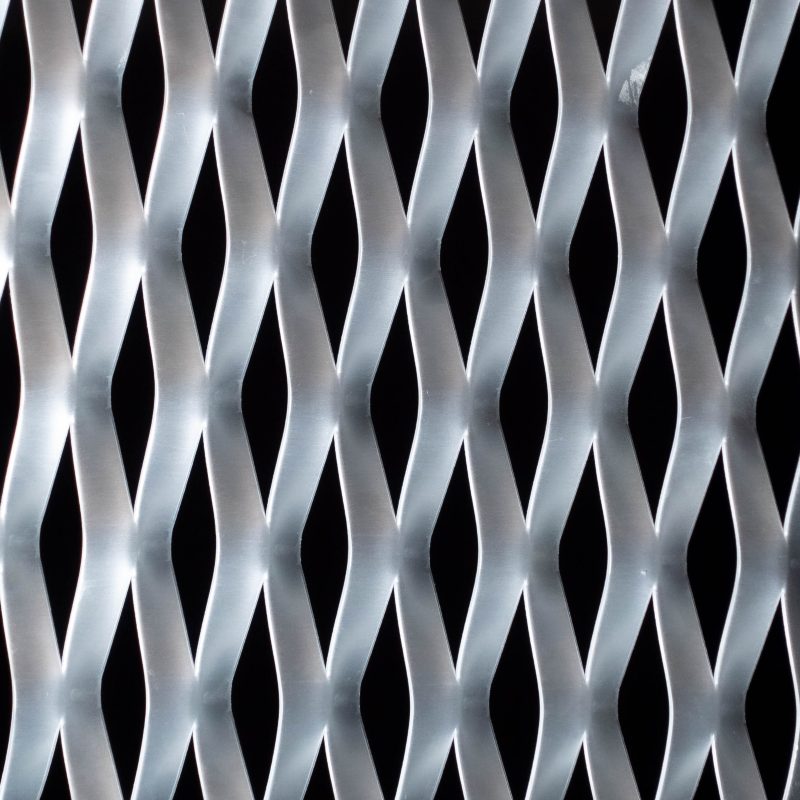

We provide the solution for industrial designers’ concern with both the mechanical requirements and sales appeal for products using decorative expanded metal. Our architectural, decorative mesh is a self-contained piece of metal that will not unravel. This means that it will remain secure in its initial shape after years of constant usage.
Material: Aluminum
Interior Applications
- Windows
- Doors
- Skylight Guards
- Partitions
- Ceiling Panels
- Screening
Exterior Applications
- Architectural fencing
- Facades
- Sidewalk gating
- Building cladding
SPECIFICATIONS
| STYLE | LBS. PER 100 sq ft | SWD | LWD | THICKNESS | WIDTH | OVERALL THICKNESS | OPEN AREA |
|---|---|---|---|---|---|---|---|
| 5/16″ – .040 | 38 | 0.28 | 0.6 | 0.04 | 0.1 | 0.103 | 30% |
| 1/2″ – .051 | 48 | 0.6 | 1.2 | 0.051 | 0.2 | 0.219 | 35% |
| 1/2″ – .081 | 77 | 0.6 | 1.2 | 0.081 | 0.2 | 0.219 | 35% |
| 1-1/2″ .051 | 59 | 1.3 | 3 | 0.051 | 0.5 | 0.5 | 21% |
| 1-1/2″ – .081 | 89 | 1.3 | 3 | 0.081 | 0.5 | 0.53 | 23% |
| TOLERNANCES | Minimum | +/- 5% | Absolute | Minimum | +/- 5% | +/- 10% | +/- 10% |
