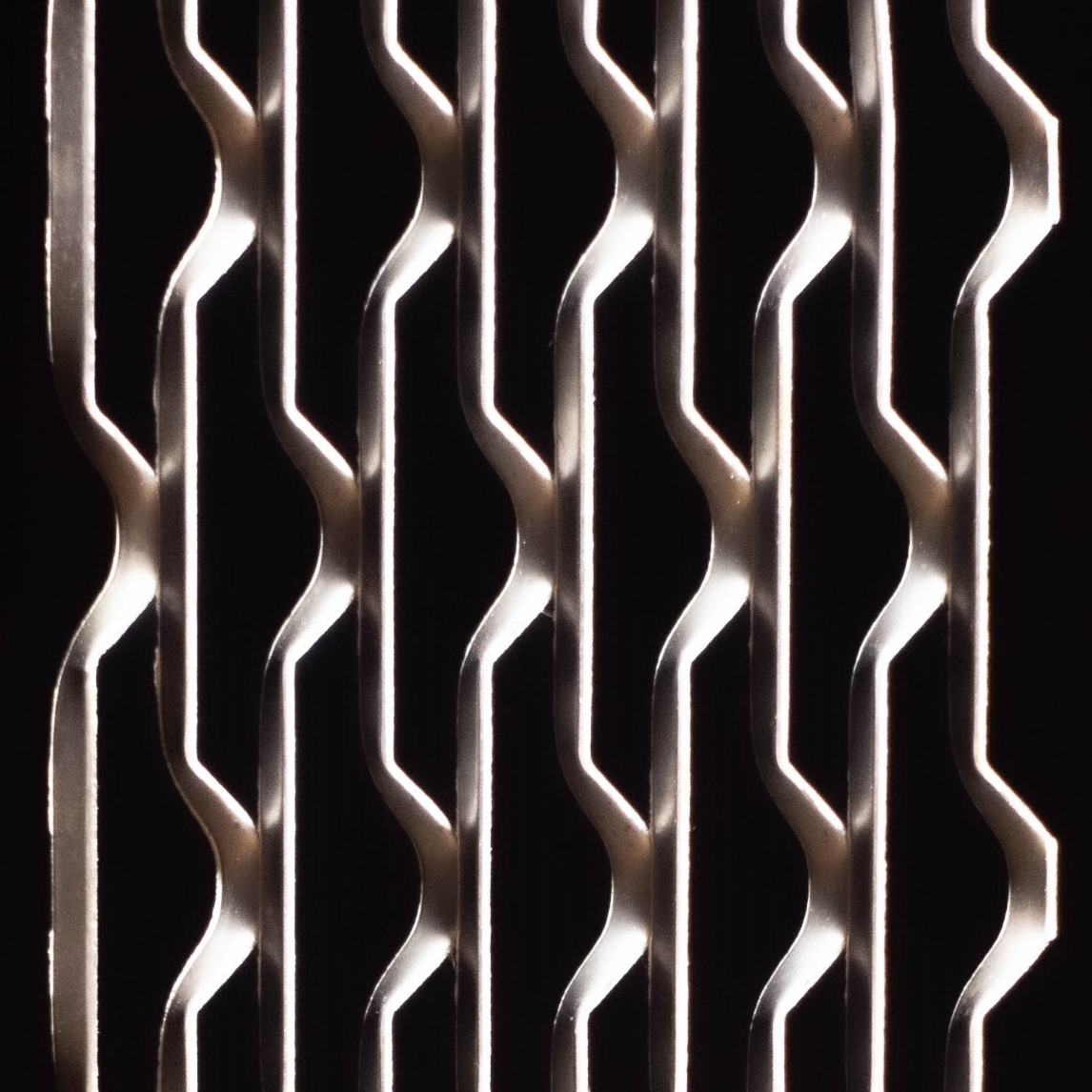

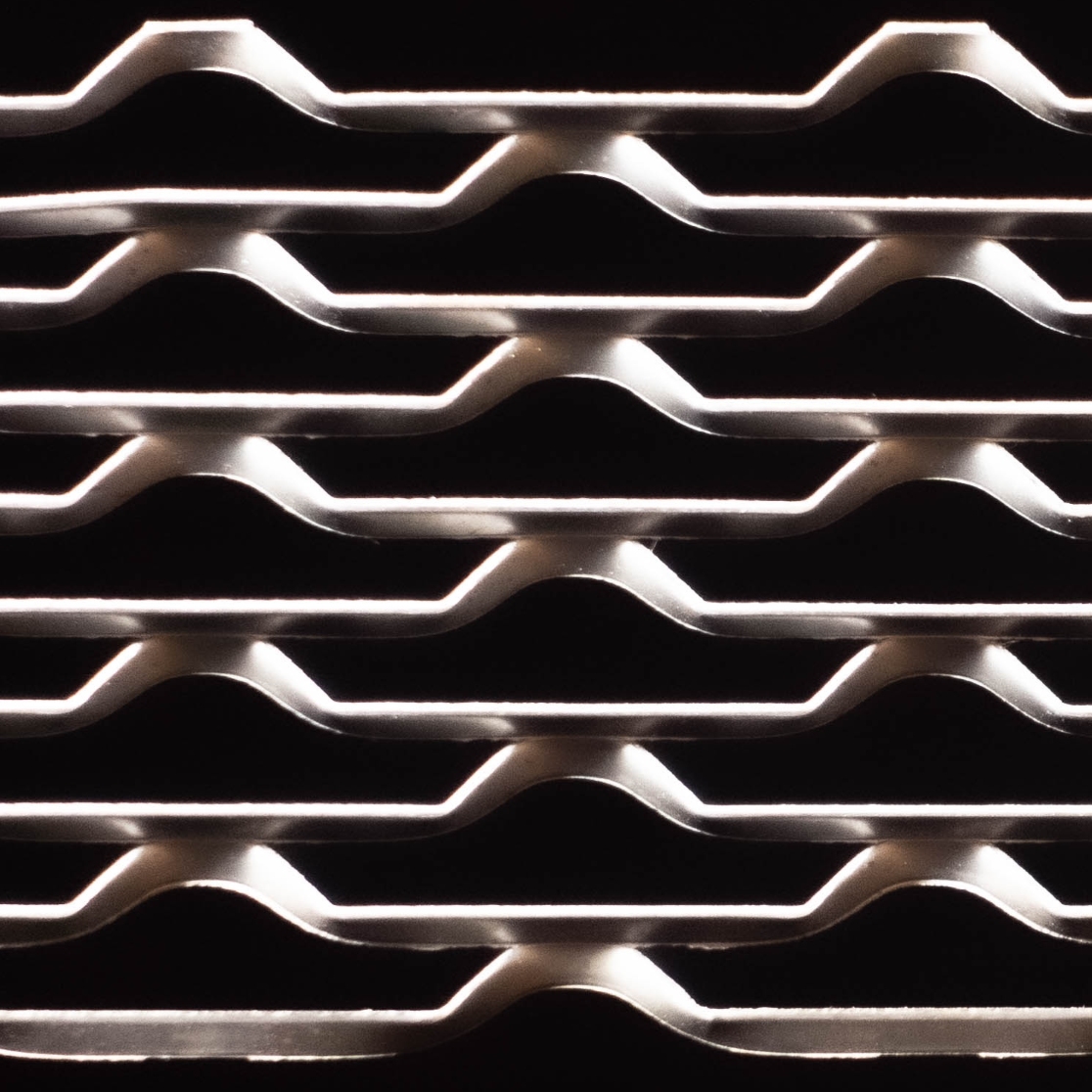

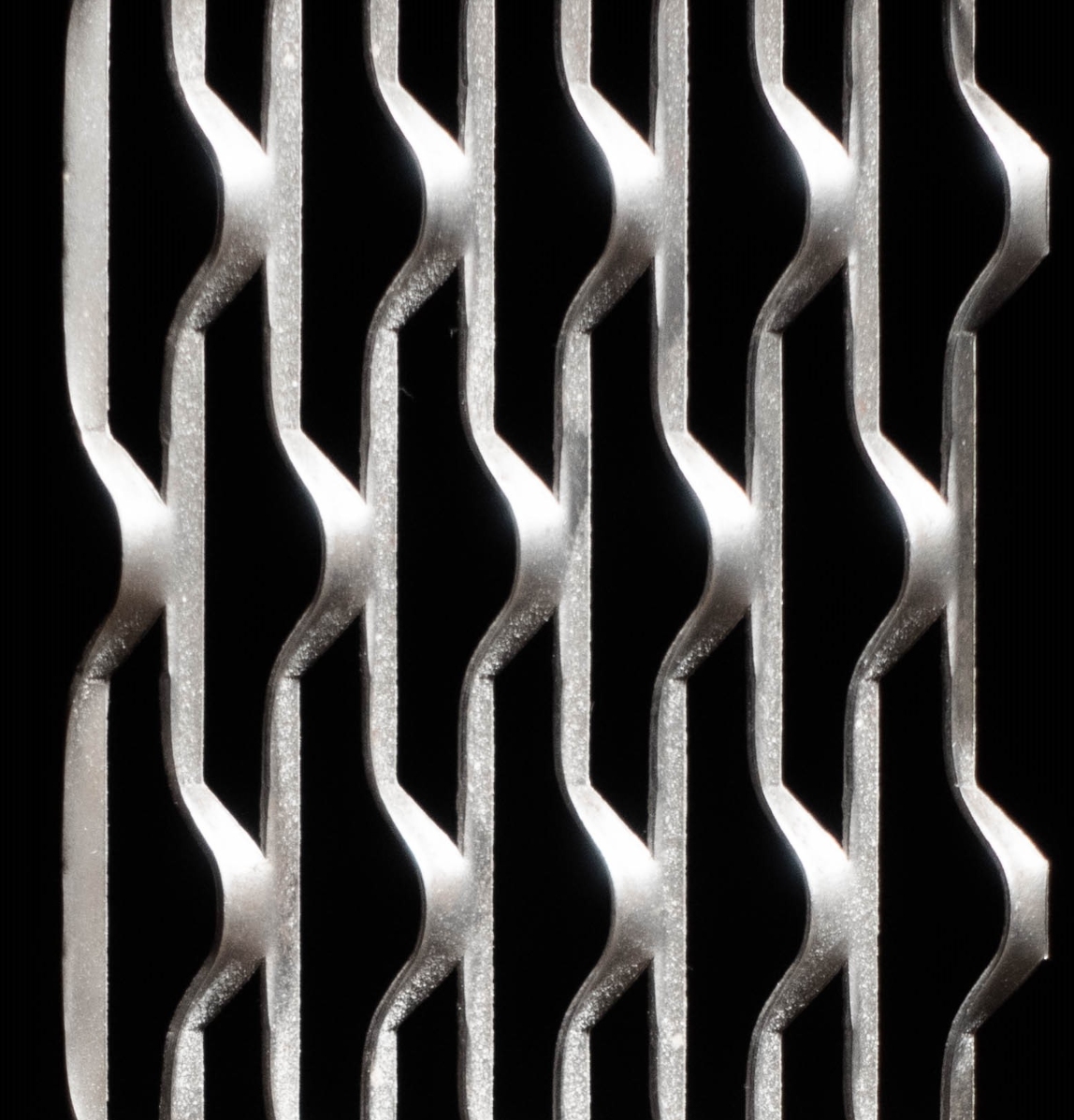

GALAXIE DECORATIVE METAL
We provide the solution for industrial designers’ concern with both the mechanical requirements and sales appeal for products using decorative expanded metal. Our architectural, decorative mesh is a self-contained piece of metal that will not unravel. This means that it will remain secure in its initial shape after years of constant usage.
Material: Aluminum
Interior Applications
- Windows
- Doors
- Skylight Guards
- Partitions
- Ceiling Panels
- Screening
Exterior Applications
- Architectural fencing
- Facades
- Sidewalk gating
- Building cladding
SPECIFICATIONS
| STYLE | LBS. PER 100 sq ft | SWD | LWD | THICKNESS | WIDTH | OVERALL THICKNESS | OPEN AREA |
|---|---|---|---|---|---|---|---|
| 3/16″ – .040 | 34 | 0.2 | 0.812 | 0.04 | 0.06 | 0.099 | 47% |
| 1/2″ – .051 | 31 | 0.42 | 1.2 | 0.051 | 0.1 | 0.141 | 57% |
| 3/4″ – .051 | 36 | 0.7 | 2.5 | 0.051 | 0.1 | 0.275 | 50% |
| TOLERANCES | Minimum | +/- 5% | Absolute | Minimum | +/- 5% | +/- 10% | +/- 10% |
